spider crane with forklift

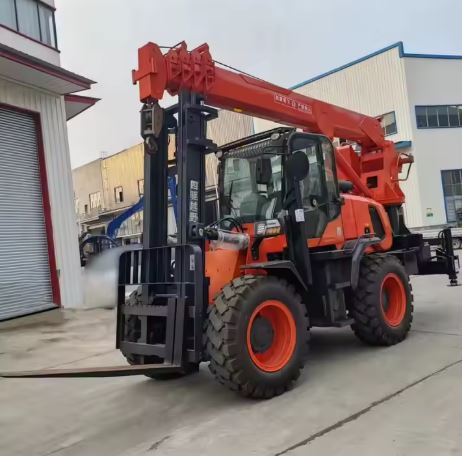

spider crane with forklift - Image 2

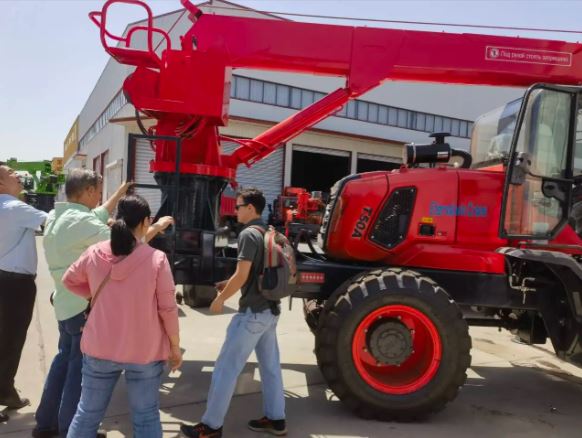

spider crane with forklift - Image 3

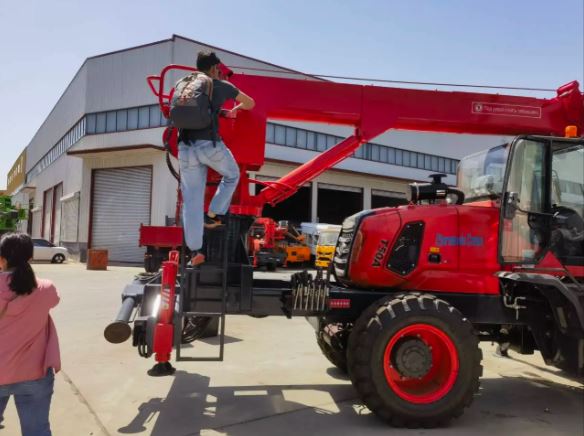

spider crane with forklift - Image 4

spider crane with forklift

$240,000.00

Forklift crane

On the basis of maintaining the mechanical properties of forklift trucks, modified a full back to the rotating arm, a small lifting machine, which is to preserve the loading and unloading of forklift trucks, but also make up for the forklift trucks can not be loaded and unloaded heavy work. Forklift tail crane using the original hydraulic system, easy to operate, safe and reliable, flexible, with high efficiency, multi-purpose performance and so on. Both the original forklift function, but also lifting function, so especially suitable for workshop maintenance, yard and place of narrow stacking of goods, can also be used as a general lifting and loading and unloading. Generally, it is suitable for the work area with narrow space, and it can go in and out freely. It can also be equipped with wireless remote control to realise the operation without dead angle.
Category: Tags: , , , Brand:
Specification
3.5ton Forklift (4WD)
Rated capacity
3.5ton
Engine brand
Yunnei 490
Cab
Fully enclosed cab
Axle
Small wheel edge cast steel reduction axle
Transmission
265 double high and low speed
Tires
20.5/70-16 dragon pattern
Standard lifting height
3 meters
Stage width
16cm
Dimensions
4200*1800*2600mm
Fork width
12cm
Fork length
1.2 m
Crane
5ton
Chassis model
reinforced round chassis
Maximum lifting height
5ton
Boom type
Full extension 12m (3 m and 4 sections)
Winch
5 tons
Hydraulic legs
5 (2 on both sides, 1 on the back)
5ton Forklift (4WD)
Rated capacity
5ton
Engine brand
Yunnei 4102
Cab
Fully enclosed cab
Axle
large and medium wheel edge cast steel reduction axle
Transmission
265 double high and low speed
Tires
16/70-24 dragon pattern
Standard lifting height
4 meters
Stage width
18cm
Dimensions
4500*2000*2950
Fork width
12cm
Fork length
1.52 m
Crane
5ton
Chassis model
reinforced round chassis
Maximum lifting height
5ton
Boom Length
Full extension 16m (4 m and 4 sections)
Winch
5 tons
Hydraulic legs
5 (2 on both sides, 1 on the back)
8ton Forklift (4WD)
Rated capacity
8ton
Engine brand
Yuchai 4105 supercharged engine(Emission standard 2）
Gearbox
280 Double high and low speed hydraulic torque converter
Axle
Heavy wheel edge cast steel axle
Driven mode
4WD 4 Wheels
Tires
12R22.5 Vacuum wire tyre,Larger double row tires
Minimum turning radius
3500mm
Standard lifting height
4 meters
Stage width
22cm
Dimensions
4500*2200*2800mm(Mast and cab are detachable)
Fork width
12cm
Fork length
1.52 m
Crane
8ton
Chassis model
Enlarged reinforced round base
Rated lifting weight
8ton
Boom type
16m (5 sections, 4m each , and U type boom)
Winch
8ton
Hydraulic legs
5
